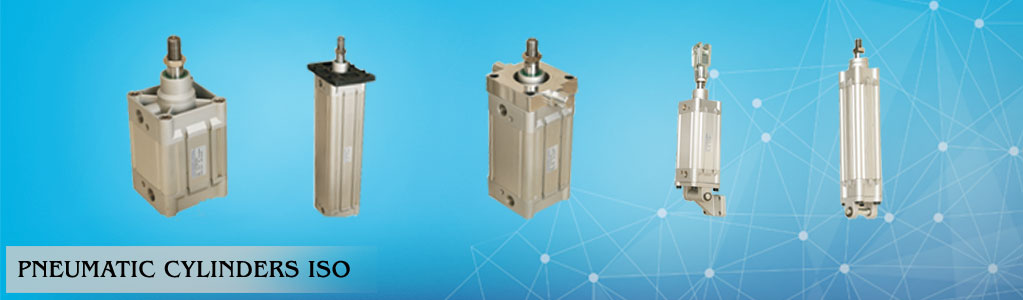

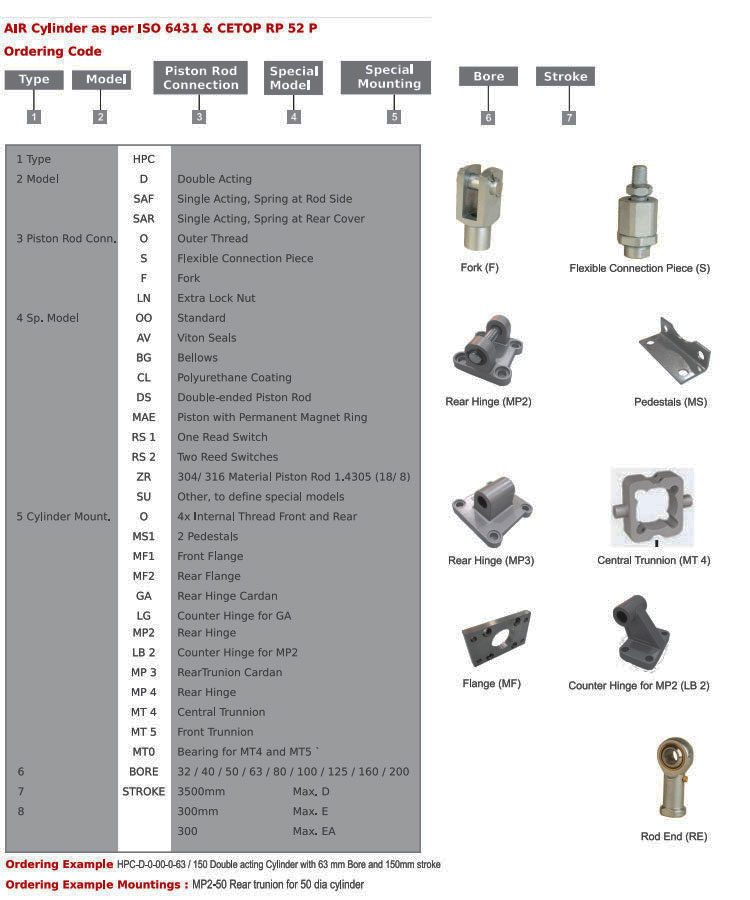

Pneumatic Cylinders ISO





Material of Construction

Part Material Part No. Part Material Part No.
Cylinder Tube Anodised Aluminium 15 Cushioning Screw

M. S.

8
Covers Aluminium 1, 2 Cushioning Seal NBR 11
Piston rod Stainless Steel 410 / EN8

4

Rod Seal Polyurethane 10
Piston Aluminium 3 0 Ring NBR 18
Cover Seals NBR 12, 13 Cover Bolts Galvanized Steel 6
Lip Seals NBR 14 Permanent Magnet   17
Piston rod guide Self Lubricating High Polymer 5 SHC Screw HGA Steel 7
Washer M. S. 9 Piston Guide High Polymer 16

Features
• According to ISO 15552 & VDMA 24562
• Cylinder tube of extruded profile aluminium
• Cushioning adjustable at both ends, high energy absorption with PU
• Lubrication not necessary (maintain once started oil mist lubrication)
• Compressed air dried to a pressure dew point 3 °C - 5 °C admissible
• Operating medium: Compressed air, filtered to minimum 50 urn
• Operating pressure range 1-10 bar
• Operating Temperature range - 20°C to + 70 °C
• Life 20,000 krn, with PU Seals
• Minimum operating pressure 0.3 bar
• Speed 3 m/ see maximum



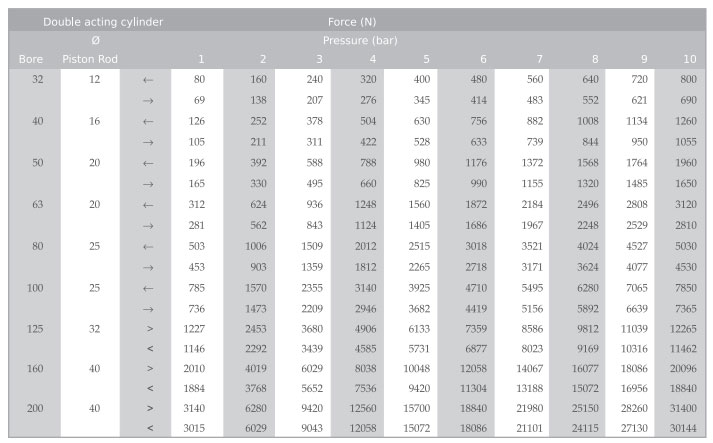

Remark 1 Max. 1 bar is necessary to deal with the mechanical friction Remark 2 To obtain a uniform speed, the load degree is not to be chosen over 60%
