Pneumatic Cylinders



Tie Rod Construction




θ 1 ½" -θ 14" Bore Air Cylinders.
• Sizes available 1 ½" 2" 2¼" 2½" 3 and 4" bore diameter (Medium bore) and 5",6", 8",10", 12" and 14" bore diameter. (Large Bore)
• Suitable for a wide range of applications.
• Available in all types of mountings and attachments.
• Single, Double acting, Magnetic, Double Ended, Tandem, Telescopic.
• Max stroke lengths upto 2000 mm.



Technical Characteristics
Media : Air
Mountings & Accessories
Seals : Nitrile, Viton on request
Temperature : 0°c to 80°c (for Nitrile Seals)
Piston : Up to 4" Aluminium & from 5" to 14" cast iron.
Pressure : 0.5 to 10.2 kgf/cm2, high pressure on request.
Piston rod : En-8 (ground & Hard Chrome Plated), SS304 on request
End Covers : Up to 4" Aluminium die Casted & powder coated. From 5" to 14" close grain cast iron & powder coated.
Cylinder Barrel : Upto 4" Dia, Aluminium, M.S.
(Honed & Hard Chrome Plated) From 5" dia. To 14" dia . MS (Honed & Hard Chrome Plated) Powder Coated on request

Part List
No. Description Qty.
01 Front cover 1
02 Rear cover 1
03 Tube 1
04 '0' ring for cover 2
05 Wear ring 1
06 'U' cup seal for piston 2
07 Piston 2
08 Tie rod nut 8
09 Tie rod 4
11 'U' cup for piston rod seal 1
12 Bush bearing 1
13 Wiper Seal 1
14 Piston rod 1
15 '0' ring for bleed screw 2
16 Bleed Screw 2
17 Lock nut 2
18 Cap (for Medium Bore cylinders) 2
19 Cushioning boss (for Large Bore cylinders) 2
20 Cushioning Seal 2
21 Sleeve (for Medium Bore cylinders) 2
22 bush (for Large Bore cylinders) 2
23 '0' ring for Sleeve (for Medium Bore cylinders) 2
24 '0' ring bush (for Large Bore 2
25 Check Screw 2
26 '0' ring for check screw 2
27 Piston rod nut 1
28 Spring 2
29 Ball 2


Note :
To decide cylinder bore size :
• Establish force required and working pressure available.
• Select working pressure on top of the chart.
• Select force required by reading down from selected working pressure.
• Read Out Cylinder bore size on left of the chart.

Example :
• If it is astablished that the force required is 150kg and working pressure available is 7 bar, above chart will lead you to select 1 ¼" bore cylinder.






Pneumatic Cylinders ISO






Material of Construction

Part Material Part No. Part Material Part No.
Cylinder Tube Anodised Aluminium 15 Cushioning Screw

M. S.

8
Covers Aluminium 1, 2 Cushioning Seal NBR 11
Piston rod Stainless Steel 410 / EN8

4

Rod Seal Polyurethane 10
Piston Aluminium 3 0 Ring NBR 18
Cover Seals NBR 12, 13 Cover Bolts Galvanized Steel 6
Lip Seals NBR 14 Permanent Magnet   17
Piston rod guide Self Lubricating High Polymer 5 SHC Screw HGA Steel 7
Washer M. S. 9 Piston Guide High Polymer 16

Features
• According to ISO 15552 & VDMA 24562
• Cylinder tube of extruded profile aluminium
• Cushioning adjustable at both ends, high energy absorption with PU
• Lubrication not necessary (maintain once started oil mist lubrication)
• Compressed air dried to a pressure dew point 3 °C - 5 °C admissible
• Operating medium: Compressed air, filtered to minimum 50 urn
• Operating pressun~ range 1-10 bar
• Operating Temperature range - 20°C to + 70 °C
• Life 20,000 krn, with PU Seals
• Minimum operating pressure 0.3 bar
• Speed 3 m/ see maximum


Double Acting Cylender FORCE N
  Ø       Pressure (bar)
BORE

PISTON ROD

  1 2 3 4 5 6 7 8 9 10
32 12 80 160 240 320 400 480 560 640 720 800
    69 138 207 276 345 414 483 552 621 690
40 16 126 252 378 504 630 756 882 1008 1134 1260
    105 211 311 422 528 633 739 844 950 1055
50 20 196 392 588 788 980 1176 1372 1568 1764 1960
    165 330 495 660 825 990 1155 1320 1485 1650
63 20 312 624 936 1248 1560 1872 2184 2496 2808 3120
    281 562 843 1124 1405 1686 1967 2248 2529 2810
80 25 503 1006 1509 2012 2515 3018 3521 4024 4527 5030
    453 903 1359 1812 2265 2718 3171 3624 4077 4530
100 25 785 1570 2355 3140 3925 4710 5495 6280 7065 7850
    736 1473 2209 2946 3682 4419 5156 5892 >6639 7365
125 32 1227 2453 3680 4906 6133 7359 8586 9812 11039 12265
    1146 2292 3439 4585 5731 6877 8023 9169 10316 1462
160 40 2010 4019 6029 8038 10048 12058 14067 16077 18086 20096
    1884 3768 <652 7536 9420 11304 13188 15072 16956 18840
200 40 3140 6280 9420 12560 15700 18840 21980 25150 28260 31400
    3015 6029 9043 12058 15072 18086 21101 24115 7130 30144

Remark 1 Max. 1 bar is necessary to deal with the mechanical friction Remark 2 To obtain a uniform speed, the load degree is not to be chosen over 60%






Round Compact Pneumatic Cylinders



Bore Stroke
12 mm 25-500
16mm 25-500
20mm 25-500
25 mm 25-500
32 mm 25-500
40mm 25-500
50mm 25-500

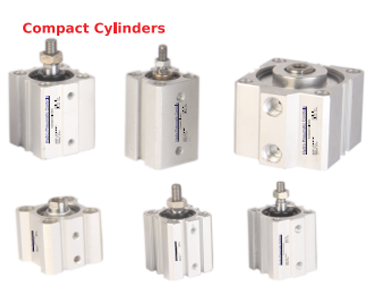

Bore Stroke
16mm 5-100 mm
20mm 5-100 mm
25 mm 5-100 mm
32 mm 5-100 mm
40mm 5-100 mm
50mm 5-100 mm
63 mm 5-100 mm
80mm 5-100 mm
100 mm 5-100 mm
