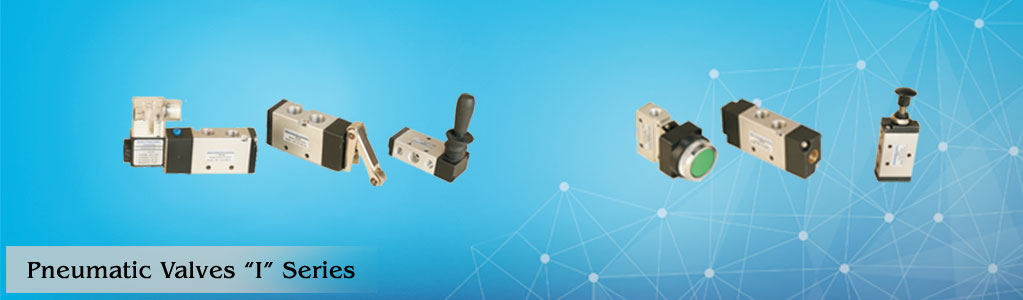

Pneumatic Valves "I" - Series |
|
|
|
|
![](images/I-series-Spool-type-Hand-Lever-Valve--new.png) |
"HPC" Make I series Spool type Hand Lever Valve
Size:l/4",3/8", ½ BSP
Type:3/2,5/2,5/3way |
|
|
|
![](images/I-series-Spool-type-Push-Button-Valve-new.png) |
"HPC" Make I series Spool type Push Button Valve
Size: 1/8" BSP
Type: 3/2, 5/2 way |
|
|
|
![](images/I-series-Spool-type-Roller-Lever-Operated-Valve-new.png) |
"HPC" Make I series Spool type Roller Lever
Operated Valve
Size: 1/8", 1/4"BSP
Type: 3/2, 5/2 way |
|
|
|
![](images/I-series-Spool-type-Push-Pull-Valve-new111.png) |
"HPC" Make I series Spool type Push Pull Valve
Size: 1/8",1/4",3/8", ½ " BSP
Type: 3/2,5/2 way |
|
|
|
![](images/I-series-Spool-type-Push-Pull-Valve-new1.png) |
"HPC" Make I series Disk Rotary Valve
Size:1/4",3/8", ½ " BSP
Type: 4/2 way
Available in Knob type / Lever type |
|
|
|
![](images/I-series-Spool-type-Single-Solenoid-Valve-new.png) |
"HPC" Make I series Spool type Single Solenoid Valve
Size:1/8",1/4",3/8",1/2" BSP
Type: 3/2, 5/2 way |
|
|
|
![](images/I-series-Spool-type-Double-Solenoid-Valve-new.png) |
"HPC" Make I series Spool type Double Solenoid Valve
Size:1/8",1/4",3/8",1/2" BSP
Type :3/2, 5/2,5/3 way |
|
|
|
![](images/I-series-Direct-Acting-Valve-new.png) |
"HPC" Make I series Direct Acting Valve
Size:1/8",1/4",3/8",1/2" BSP
Type:2/2,3/2 way |
|
|
|
![](images/I-series-Spool-type-Single-Pilot-Valve-new.png) |
"HPC" Make I series Spool type Single Pilot Valve
Size: 1/8", 1/4" BSP
Type:3/2,5/2 way |
|
|
![](images/I-series-Spool-type-Double-Pilot-Valve-new.png) |
"HPC" Make I series Spool type Double Pilot Valve
Size: 1/8", 1/4" BSP
Type: 3/2, 5/2 way |
|
|
|
Technical Specifications |
Design |
|
Port Size
medium
Working Pressure
Recommended Oil
Ambient Temperature
Flow
Material of Construction |
1/8",1/4",3/8",1/2"
Compressed Air, Filtered & Lubricated
2-10 BAR
ISO VG32 (Servo System 32)
5 deg cel - 75 deg Celsius
1200 LPM
Housing: Aluminium, Seals: Nitrile |
Electrical |
|
Voltage +-10%
Power Consumption
Duty Cycle
Class of Insulation
Coil Protection |
DC
5W
continuous
Class F
IP 65 |
|
|
|
|
![](images/i-series-chart.png) |
|
|
