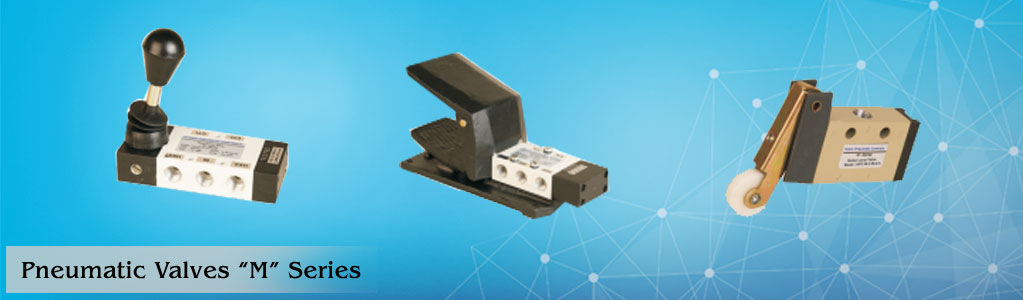

Pneumatic Valves " M " Series |
| |
| |
| |
 |
"HPC" Make M series Spool type Hand Lever Valve
Size: 1/4",3/8", ½"BSP
Type :3/2, 5/2, 5/3 way |
|
| |
|
 |
"HPC" Make M series Spool type
Foot Operated Valve
Size: 1/4",3/8", ½" BSP
|
|
| |
|
 |
"HPC" Make M series Spool type
Push Button Valve
Size: 1/8" BSP
Type: 3/2, 5/2 way |
|
| |
|
 |
"HPC" Make M series Spool type
Roller Lever Operated Valve
Size: 1/8", 1/ 4" BSP
Type: 3/2, 5/2 way |
|
| |
|
 |
"HPC" Make M series Spool type Push Pull Valve
Size: 1/8", 1/4", 3/8", ½"ESP
Type: 3/2, 5/2 way |
|
| |
|
 |
"HPC" Make M series Disk Rotary Valve
Size: 1/4",3/8", ½" BSP
Type: 4/2way
Available in Knob type / Lever type |
|
| |
|
 |
HPC" Make M series
Spool type Single Solenoid Valve
Size: 1/8", 1/ 4", 3/8", ½" BSP
Type : 3/2, 5/ 2 way |
|
| |
|
 |
"HPC" Make M series
Spool type Double Solenoid Valve
Size: 1/8", 1/ 4", 3/8", ½" BSP
Type : 3/2, 5/2, 5/3 way |
|
| |
 |
"HPC" Make M series Direct Acting Valve
Size: 1/8", 1/ 4", 3/8", ½" BSP
BSP Type : 2/2, 3/2 way |
|
| |
|
 |
"HPC" Make M series Spool type Single Pilot Valve
Size: 1/8", 1/4", 1/2" BSP
type: 3/2, 5/2way |
|
| |
|
HPC" Make M Series spool type
Double pilot valve
Size:1/8', 1/4",1/2" BSP
Type:3/2,5/2, 5/3, way |
|

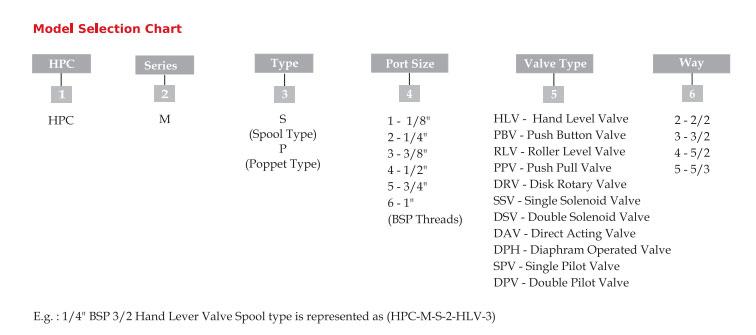

| Technical Specification |
| Mechanical Characteristics : |
| Body |
Aluminium |
| Orifice |
For 1/4 " BSP Valve 6.5mm 1/2" BSP 12.5mm |
| Ports |
1/4", 3/8", BSP (NTP on request) |
| Seals |
Nitrile Rubber |
| Design |
Spool Type internal pilot Operated for 5/2/ way & external pilot Operated for 3/2 way. |
| |
|
| Operating Conditions: |
| Media |
Air (Use filtered & lubricated Air 40 Micron)
|
| Temperature Range |
+5° C to 50° C |
| Pressure Range |
2.5 to 10 Bar |
| Leakage |
Bubble Tight |
| |
|
| Electrical Conditions: |
Coil Voltage : 230 VAc, 110VAc, 24 VDc |
| frequency |
50 Hz |
| Enclosure |
Ip 65 |
| Wattage |
6W. |
|
|
| |
 |
| |
|
| |
 |
|
| |
|
|
