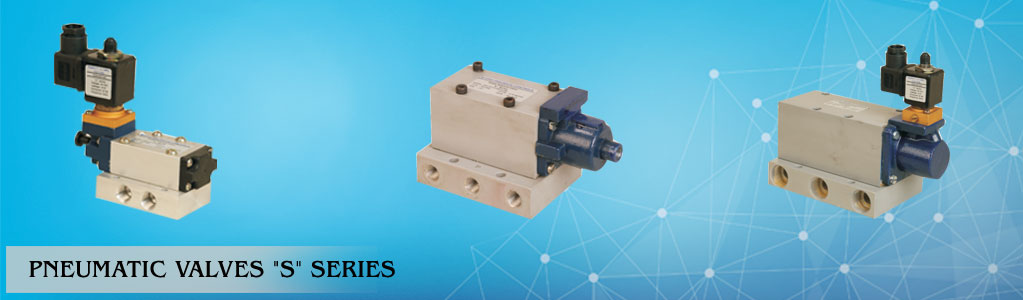

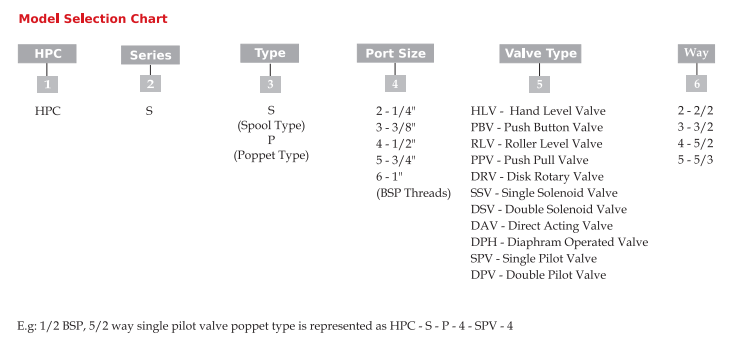

Pneumatic Valves " S " Series |
| |
"HPC" Make S series Poppet type Solenoid Valves
| Size: 1/4" to 1" BSP |
Type: 5/2 way |
offered in 3/8" & 3 / 4" Basic |
|
| Salient Features |
| • Robust design |
• Highflow Valves |
| • Long Life of seals |
• Ideal for adverse air conditions |
|
|
 |
| |
|

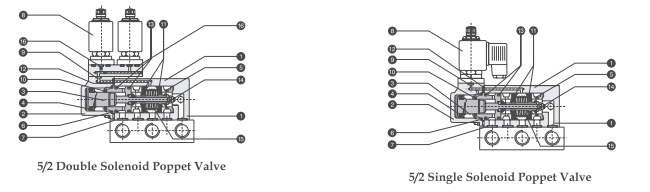

| Part List |
| No |
Description |
Quality |
| |
|
Single Sol. |
Double Sol |
| 1 |
Valve body |
1 |
1 |
| 2 |
Pilot housing |
1 |
1 |
| 3 |
Poppet and piston assly |
1 |
1 |
| 4 |
"U" Cup Packing |
1 |
1 |
| 5 |
Spool |
1 |
1 |
| 6 |
Gasket |
1 |
1 |
| 7 |
"O" ring (Sub base plate) |
5 |
5 |
| 8 |
Coil assembly |
1 |
2 |
| 9 |
'O' ring ( solenoid housing) |
1 |
2 |
| 10 |
"O" ring (poppet assly.) |
1 |
1 |
| 11 |
Inlet seals |
2 |
2 |
| 12 |
'0' :ring CRilot housing) |
1 |
1 |
| 13 |
'0' ring ( retainer) |
2 |
2 |
| 14 |
Outlet seals |
2 |
2 |
| 15 |
Spring |
1 |
1 |
| 16 |
'0' ring ( Double sol. housing) |
- |
4 |
|
|
|
| |
|
• Seal Kit consists of item 4,6,7,9 , 10,11,12, 13 ,& 14 for single solenoid vlave.
• Seal kit consists of items 4,6,7,9,10,11,12,13, 14 & 16, for double solenoid valve.
|
|
| |
|
 |
| |
|
| Specifications |
|
| Medium |
Compressed air, Filtered |
| Design |
Poppet type with spring return |
| Working pressure |
1.5 - 10 Kg./sq. cm. |
| Ambient / fluid temp |
- 10° to 85° C |
| Cv ( Nominal flow ) |
| 3/8” Basic |
3/4” Basic |
| 1/4” |
3/8" |
1/2” |
1/2” |
3/4” |
1” |
| 1.9< |
2.04 |
2.38 |
5.4 |
5.8 |
5.8 |
|
|
| Manual overide |
Screw type, Detent |
| Optional feature |
PIC with light indicator,
Explosion proof coil |
Response time
at 5 Bar |
On time : 35 ms.
OIf time : 45 ins. |
| Materials |
Body, Base, Pilot Housing : Aluminium
Seals : NBR |
|
|
|
| |
|
| Coil Specifications |
|
| Type |
Valve with G25 coil |
| Tube Assy. |
SS Plunger with NBR seals, SS magnet core |
| construction |
assembled with brass adapter. |
| Coil voltages |
AC : 24, 42, 48, 110, 240 V 50Hz |
| |
DC : 12, 24, 48 V |
| Voltage range |
+ 10% |
| Power consumption |
AC : Pull 7.5 VA, Hold :5 V A
DC : 3 WATT |
| Duty cycle |
100% |
| Class of insulation |
F( Winding wireof class' H' Insulation |
| Degree of protection |
IP 65-IS 2147 |
| Cable Connector |
DIN 43650-PG 11 |
|
|
|
| * Poppet vlave is also offered with flame-proof coil duty certified by CMRS Dhanbad for grades I,IIA, IIB, Refer data sheet PMV-07 for details. |
|
| |
|
| |
"HPC" Make S series Poppet type pilot Valves |
|
|
| Size: 1/4" to 1" BSP |
|
Type: 5/2 way |
| offered in 3/8" & 3/4" Basic |
|
|
| Salient Features |
|
|
| • Robust design |
|
• High flow Valves |
| • Long Life of seals |
|
• Ideal for adverse air conditions |
|
 |
| |
|
 |
|
| |
|

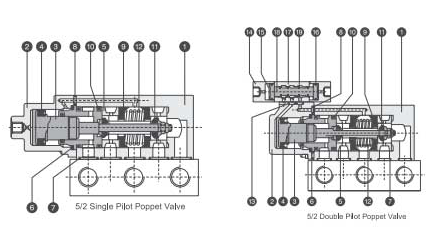

| Part List |
| NO |
16 DISCRIPTION |
QTY |
| |
|
Hand
Level Optd. |
Foot
Lever
Optd. |
| 1 |
Valve body |
1 |
1 |
| 2 |
Pilot housing |
1 |
1 |
| 3 |
Poppet and piston assly. |
1 |
1 |
| 4 |
'U' cup packing |
1 |
1 |
| 5 |
Spool |
1
|
1 |
| 6 |
Gasket for pilot housing |
1 |
1 |
| 7 |
'0' ring ( Sub-base plate ) |
5 |
5 |
| 8 |
'0' ring ( Pilot housing ) |
1 |
1 |
| 9 |
Inlet seals |
2 |
2 |
| 10 |
'0' ring ( Retainer ) |
3 |
3 |
| 11 |
Outlet seals |
2 |
2 |
| 12 |
Outlet seals |
1 |
1 |
| 13 |
'0' ring ( Pilot valve ) |
- |
-2 |
| 14 |
Pilot housing ( Exel valve ) |
- |
-2 |
| 15 |
Piston |
- |
-2 |
| 16 |
Piston seal |
- |
-2 |
| 17 |
Body ( Pilot valve ) |
- |
-1 |
| 18 |
Spool ( Pilot valve ) |
- |
1 |
| 19 |
Dancing seals |
- |
4 |
|
| |
|
|
Seal kit consists of items 4,6,7,8,9,10,& 11, for single pilot valve.
Seal kit consists of items 4,6,7,8,9,10,11, 16, & (17+19 ) for double pilot valve. |
|
| Specifications |
|
| Medium |
Compressed air, Filtered |
| Design |
Poppet type with spring return |
| Working pressure |
1.5 -10 Kg./sq. cm. |
| Ambient / fluid temp |
-10° to 85° C. |
| Pilot port connection |
G 1/8 |
| Cy ( Nominal flow ) |
| 3/8” Basic |
3/4” Basic |
| 1/4” |
3/8" |
1/2” |
1/2” |
3/4” |
1” |
| 1.9 |
2.04 |
2.38 |
5.4 |
5.8> |
5.8 |
|
|
| Response time |
On time : 35 ms. |
| at 5 Bar Materials |
Off time : 45 ms.
Body, Base, Pilot Housing : Aluminium Seals : NBR |
|
|
|
| |
|
 |
| |
|
 |
|
 |
|
|
| |
| |
|
|
